24011(20400098） Power Supply 12.5Vdc 42W 3A
24011(20400098） - Nirrau - 020204NR24011 - LEDEATOR® CONSTANT VOLTAGENR24011 RESIN-ENCAPSULATED, 42W, 90~265VAC, 12.5VDC, REV1
Tags:
Product Overview

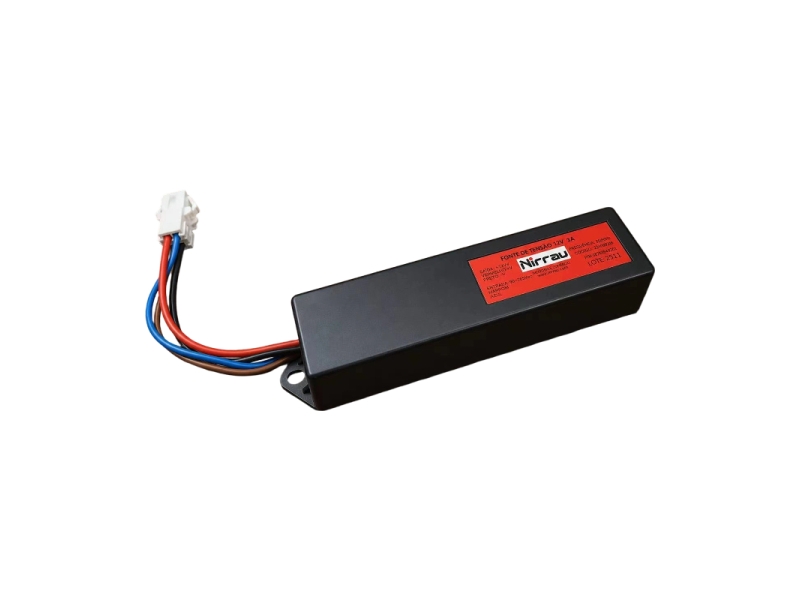

Nirrau model 020204NR24011(20400098） is an epoxy encapsulated isolated constant voltage LED power supply complying with IEC 61347 international standards. Featuring universal AC90~265V wide input, fixed 12VDC output, max 3A output current and 37.5W rated output power, this driver is fully resin-filled with IP66 ingress protection, specially engineered for 12V LED strips, LED bars and LED boards for global commercial lighting projects. It comes with 3-year manufacturer warranty and long service lifespan for bulk B2B procurement.
Product Specification
Core Specifications
- Model No.: 020204NR24011(20400098）
- Input: AC90~265Vac, 50/60Hz
- Max Power Consumption: 42W
- Output: 12VDC, Max 3A, Rated Output Power 37.5W
- Power Factor: ＞0.5 @220Vac
- Efficiency: ＞82% @220Vac
- THD: ＜180% @220Vac
- Output Ripple: ≤200mV
- Isolation Type: Input-output isolated
- Withstand Voltage: Input to casing＞1500Vac/2s/0.5mA; Input to output＞500Vac/2s/0.5mA
- Protection Grade: IP66
- Housing: Gray PP plastic (Pantone Cool Gray 10C)

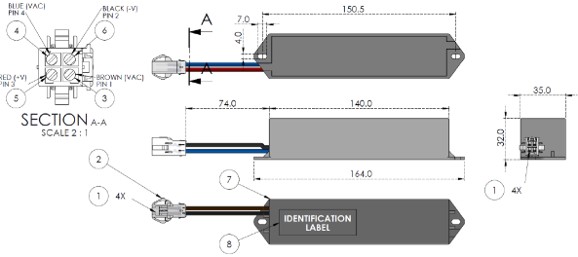

- Wiring: 20AWG high-temperature wire(105℃,600V), fixed length 74±20mm
- Standard Certification: IEC 61347-1:2015+A1:2017 / IEC 61347-2-13:2014+A1:2016
- Warranty: 3 Years
Key Features
- Full epoxy resin encapsulation on PCB, anti-spark, dustproof and waterproof up to IP66
- Built-in 20Ω NTC inrush current protection, effectively restrain instant startup surge current
- Complete safety protection: short-circuit protection (no damage after 20s continuous short), over-voltage protection
- Universal wide voltage input fits most national power grids worldwide
- TYCO standard lock-in connectors for stable, quick plug-and-play installation
- Ultra-long service life up to 50,000 hours, low failure rate only 200PPM
- Compact standardized plastic casing, convenient for mass installation and replacement
Working Environment
- Operating Temp: 0℃ ~ +50℃
- Storage Temp: -20℃ ~ +60℃
Application Range
Suitable for all kinds of 12VDC LED lighting: LED strips, LED bars, LED panel boards, indoor commercial cabinet lighting, display case lighting and decorative lighting.
Download Product Specification
Download Datashee
NR24011 & NR24027 IEC testing report A2LA
