F011 Power Supply 12Vdc 18W 1.25A

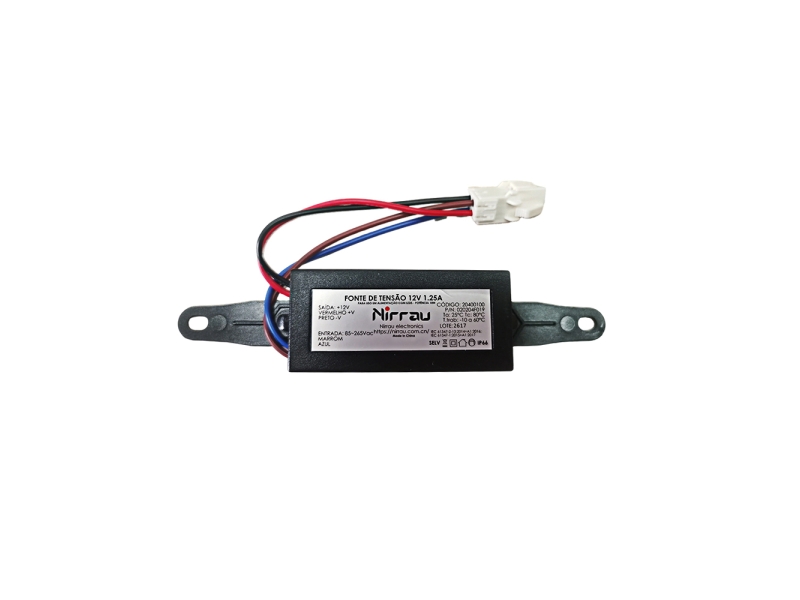

Nirrau F011 | 12VDC 18W 1.25A Isolated LEDEATOR® Constant Voltage LED Power Supply, 85~265VAC,16.5×3.5×2.9cm WITH HOUSING

Tags:

Product Overview

Nirrau LEDEATOR® F011 is an isolated constant voltage LED power supply equipped with plastic housing and fast-in 6.3mm positive lock connectors. It adopts ultra-wide 85~265VAC input, rated 12VDC output, 1.25A maximum output current, 18W total power consumption and 15.6W rated output power. Fully resin coated for anti-spark performance, this unit features IP66 protection grade and complies with IEC safety standards. It is specially designed for 12VDC LED bars, LED strips and LED boards, delivering stable and reliable operation for various indoor commercial lighting applications, with a 3-year manufacturer warranty.

Product Specification

Core Specifications

Model: F011
Input Voltage: 85~265VAC, 50/60Hz
Max Power Consumption: 18W
Output Voltage: 12VDC
Max Output Current: 1.25A
Rated Output Power: 15.6W
Power Factor: ＞0.5 @ 220VAC
Efficiency: ＞82% @ 220VAC
THD: ＜180% @ 220VAC
Output Ripple Voltage: 200mV
Isolation: Input & Output Isolated
Dielectric Withstand Voltage: Input to housing: ＞1500VAC, 2s, 0.5mA Input to output: ＞500VAC, 2s, 0.5mA
Protection Class: IP66
Overall Dimension: 16.5 × 3.5 × 2.9 cm
Connectors: 6.3mm fast-in positive lock terminal (TYCO equivalent)
Wire Spec: 22AWG, 105℃, 600V
Housing: Black plastic
Certifications: IEC 61347-1:2015+A1:2017, IEC 61347-2-13:2014+A1:2016
Service Life: 36,000 hours
MTBF: 40,000 hours
Failure Rate: 800 PPM
Warranty: 3 Years

Key Features

Universal wide voltage input 85~265VAC, compatible with global power grids
Input-output isolated structure for higher electrical safety
Full resin encapsulation, anti-spark, dustproof and waterproof (IP66)
Auto-recovery short circuit protection & over voltage protection
6.3mm fast-in positive lock connectors for quick assembly and firm connection
Durable black plastic housing, compact size for easy installation
High efficiency and stable output, low failure rate and long service life
Compliant with international IEC safety standards

Working Environment

Operating Temperature: 0℃ ~ +45℃
Storage Temperature: -20℃ ~ +60℃

Application

Suitable for 12VDC LED bars, LED strips and LED boards. Widely used in cabinet lighting, display lighting, indoor decorative lighting and other commercial lighting systems.
