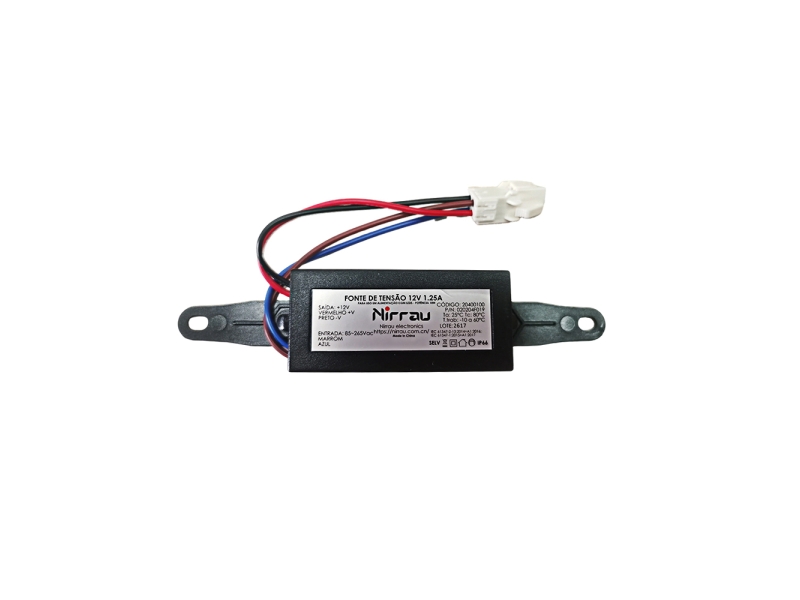

F019 Power Supply 12Vdc 18W 1.25A

20400100 - Nirrau - 020204F019 - LEDEATOR® CONSTANT VOLTAGE F019 RESIN-ENCAPSULATED, 18W, 85~265VAC, 12VDC, REV1

Tags:

Product Overview

Nirrau 020204F019 is an isolated constant voltage LED power supply with full resin encapsulation and plastic housing. It features an ultra-wide input range of 85~265Vac, fixed 12VDC output, maximum 1.25A output current, 18W total power consumption and 15.6W rated output power. Compliant with IEC international safety standards, this unit is IP66 rated to resist sparking, dust and water. Designed for 12VDC LED bars, LED strips and LED boards, it delivers reliable performance for indoor commercial lighting. The product comes with a 3-year manufacturer warranty.


Product Specification

Core Specifications

  • Model No.: 020204F019
  • Input Voltage: 85~265Vac, 50/60Hz
  • Max Power Consumption: 18W
  • Output Voltage: 12VDC
  • Max Output Current: 1.25A
  • Rated Output Power: 15.6W
  • Power Factor: ＞0.5 @ 220Vac
  • Efficiency: ＞82% @ 220Vac
  • THD: ＜180% @ 220Vac
  • Output Ripple Voltage: 200mV
  • Isolation: Input & Output Isolated
  • Withstand Voltage: Input to housing ＞1500Vac (2s, 0.5mA); Input to output ＞500Vac (2s, 0.5mA)
  • Protection Class: IP66
  • Dimensions: 16.5 × 3.5 × 2.9 cm
  • Housing: Black PP plastic
  • Wiring: 22AWG, 105℃, 600V, length 74±20mm
  • Standard Certification: IEC 61347-1:2015+A1:2017, IEC 61347-2-13:2014+A1:2016
  • Lifespan: 36,000 hours
  • MTBF: 40,000 hours
  • Failure Rate: 800 PPM
  • Warranty: 3 Years

Download Product Specification

Download Datasheet PDF
/upload/files/20400100%C2%A0-%C2%A0Nirrau%C2%A0-%C2%A0020204F019%C2%A0-%C2%A0LEDEATOR%C2%AE%C2%A0DE%C2%A0TENSAO%C2%A0F019%C2%A0RESINADO%2C%C2%A018W%2C%C2%A085~265VAC%2C%C2%A012VDC_REV1.pdf

Download Certificate
/upload/files/F019%26F011%C2%A0IEC%C2%A0testing%C2%A0report%C2%A0A2LA.pdf
