F025 POWER SUPPLY 12Vdc 42W 3A

20400128 - Nirrau - 020204F025 - LEDEATOR® DE TENSAO F025 RESINADO, 42W, 90~265VAC, 12VDC, 3A

Tags:

Product Overview

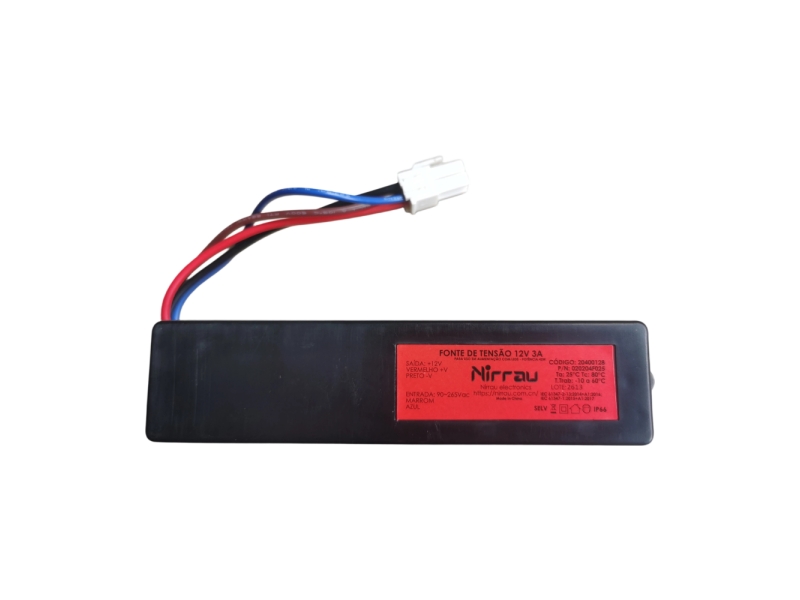

Nirrau 020204F025 is an isolated constant voltage LED power supply with full resin encapsulation. It complies with IEC international safety standards, featuring universal AC 90~265V wide voltage input, 12VDC fixed output, maximum 3A output current and 37.5W rated output power. With IP66 protection grade and epoxy encapsulated PCB design, this driver effectively prevents sparking, dust and water ingress. It is perfectly matched with 12VDC LED bars, LED strips and LED boards, ideal for global commercial LED lighting projects. This product delivers stable performance, low failure rate and comes with a 3-year manufacturer warranty.

Product Specification

Core Specifications

Model No.: 020204F025
Input Voltage: 90~265Vac, 50/60Hz
Max Power Consumption: 42W
Output Voltage: 12VDC
Max Output Current: 3A
Rated Output Power: 37.5W
Power Factor: ＞0.5 @ 220Vac
Efficiency: ＞82% @ 220Vac
THD: ＜180% @ 220Vac
Output Ripple Voltage: 200mVpp
Isolation: Input & Output Isolated
Withstand Voltage: Input to housing ＞1500Vac (2s, 0.5mA); Input to output ＞500Vac (2s, 0.5mA)
Protection Class: IP66
Certification: IEC 61347-1:2015+A1:2017, IEC 61347-2-13:2014+A1:2016
Housing: Black PP plastic
Wiring: 22AWG, 70℃, 600V, length 74 +10/-5 mm
Warranty: 3 Years

Key Features

Fully encapsulated with high-density epoxy resin, anti-spark, dustproof and waterproof (IP66)
Built-in 20Ω NTC resistor for inrush current protection
Complete safety protections: Over-voltage protection, short-circuit protection (no damage after 20 seconds continuous short circuit)
Universal wide voltage input, compatible with power grids worldwide
Adopts TYCO standard locking connectors for fast and reliable connection
Long service life up to 50,000 hours, low failure rate of 200 PPM
Compact black plastic housing, easy for installation and replacement in batches

Working Environment

Operating Temperature: -20℃ ~ +50℃
Storage Temperature: -20℃ ~ +60℃

Application

Widely used for 12VDC LED lighting products, including LED bars, LED strips and LED boards. Suitable for indoor commercial lighting, cabinet lighting, display lighting and other general lighting scenarios.
