Power Supply 12,5Vdc 18W
Power Supply 12,5Vdc 18W
Tags:
Description

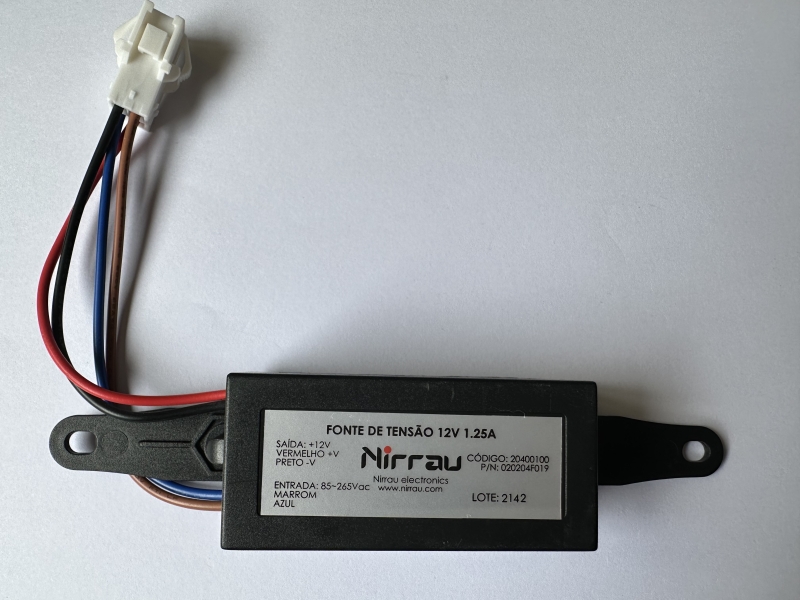

Ledeator® isolated, constant voltage, input voltage from 110 to 250Vac,
output voltage 12,5Vdc, maximum output current 1,25A, maximum power
consumption 18W, maximum power output 15W, with plastic case and
electrical connection via connectors.
Product Specification
General data
Application:
Led bars, led strips and led boards 12Vdc until 1,25A
Index of protection:
IP 66
Electrical connection:
Connectors
Mechanical data
1. Terminal power double lock, tinned brass
2. Connector power double lock 4 ways, nylon
3. Wire, brown, 22AWG, 105°, 600V, V1, 74±20mm, input
4. Wire, blue, 22AWG, 105°, 600V, V1, 74±20mm, input
5. Wire, red, 22AWG, 105°, 600V, V1, 74±20mm, positive output
6. Wire, black, 22AWG, 105°, 600V, V1, 74±20mm, negative output
7. Case, black, PP, V2
8. Identification label according O2 Led drawing
Note:
The PCB must be protected and encapsulated with epoxy resin high density, silicone coating or
similar
Electrical data
Input voltage
110 to 250Vac
Input frequency
50/60Hz
Maximum power consumption
18W
Power factor
> 0,55 @ 220Vac
Efficiency
> 80% @ 220Vac
THD
< 180% @ 220Vac
Output voltage range
12,5~13,5Vdc
Maximum output current
1,25A
Maximum output ripple voltage
200mVpp
Maximum output power
15W
Protection agains “IN-RUSH” current
Yes - Use of NTC of 20Ω or 2x of 10Ω
Input output isolation
Isolated
Hi pot power supply to case
> 1500Vac, 2s, 0,5mA
Hi pot input to output
> 500Vac, 2s, 0,5mA
EMI protection
No
Short circuit protection
Yes
the device must not damage after 20s short circuited
Over voltage protection
yes
Soft start
no soft start
Temperature
Over temperature protection
not applicable
Working temperature
0˚C to + 45˚C
Storage temperature
-20˚C to + 60˚C
Reliability
Life time
36000 hours
Supply failure rate
200 PPM
MTBF
40000 hours
Warranty
3 years
