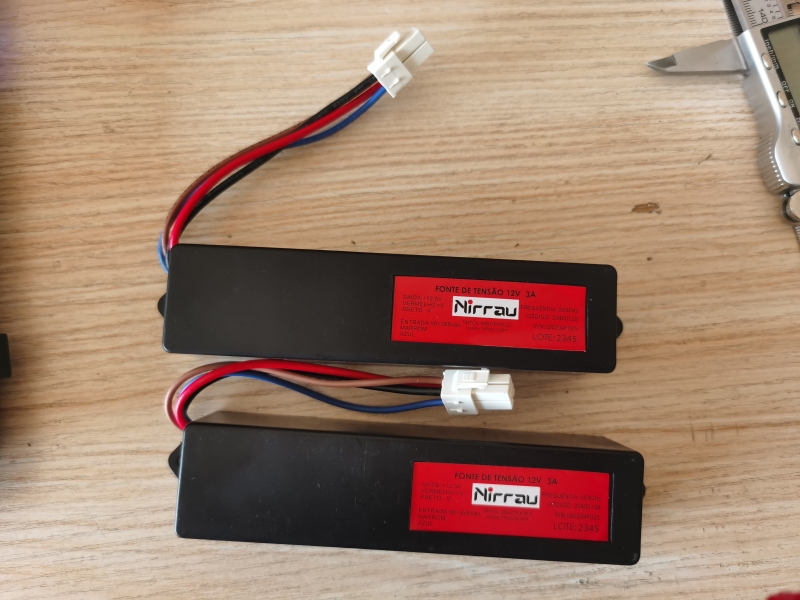

Mechanical data
1
Terminal power double lock, tinned brass
2
Connector power double lock 4 ways, nylon Glow Wire 750°C
3
Wire, brown, 22AWG, 70°, 600V, V1, 74 +10/-5mm, input
4
Wire, blue, 22AWG, 70°, 600V, V1, 74 +10/-5mm, input
5
Wire, red, 22AWG, 70°, 600V, V1, 74 +10/-5mm, positive output
6
Wire, black, 22AWG, 70°, 600V, V1, 74 +10/-5mm, negative output
7
Case, black, PP, V2
8
Identification label according O2 Led drawing
9
Lock
Note:
The PCB must be protected and encapsulated with epoxy resin high density, silicone coating or similar
Electrical data
Input voltage
90 to 265Vac
Input frequency
50/60Hz
Maximum power consumption
52W
Power factor
> 0.3 @ 220Vac
Efficiency
> 80% @ 220Vac
THD
< 200% @ 220Vac
Output voltage range
12.5 ±0,5Vdc
Maximum output current
3.5A
Maximum output ripple voltage
200mVpp
Maximum output power
43.75W
Protection agains “IN-RUSH” current
Yes - Use of NTC of 20Ω
Input output isolation
Isolated
Hi pot power supply to case
> 1500Vac, 2s, 0.5mA
Hi pot input to output
> 500Vac, 2s, 0.5mA
EMI protection
No
Short circuit protection
Yes
the device must not damage after 20s short circuited
Over voltage protection
Yes
Soft start
No soft start
Temperature
Over temperature protection
Not applicable
Working temperature
-20˚C to + 50˚C
Storage temperature
-20˚C to + 60˚C
Reliability
Life
50000 hours
Supply failure rate
200 PPM
MTBF
Modelo Handbook
Warranty
5 years
Note 2: all tolerances in this document are ± 10% unless otherwise stated.
Note 3: due to constant pursuit of refinement, these specifications can be modified at any time without prior notice.
