Power Supply of LED Strip

Power Supply 12,8Vdc 16W

Tags:

Description

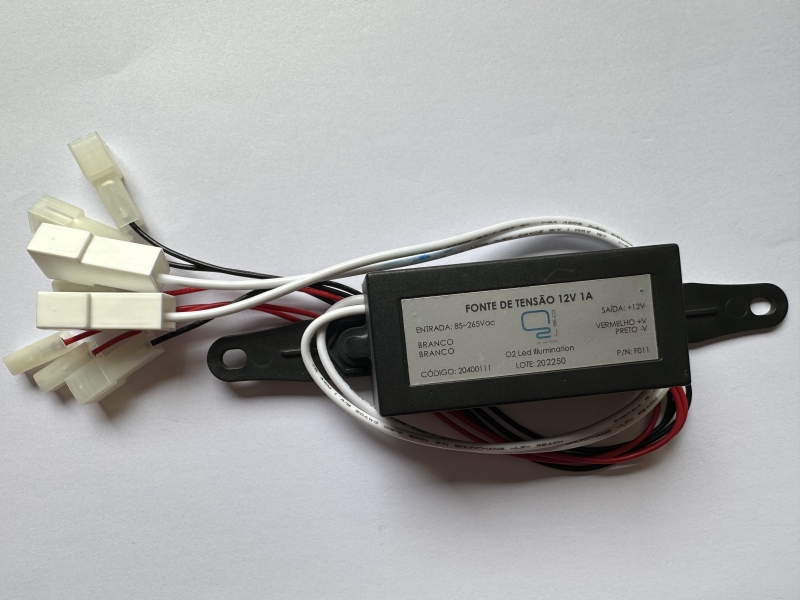

Ledeator® isolated (power supply), constant voltage, input voltage from 85 to 265Vac, output voltage 12,8Vdc,
maximum output current 1A, maximum power consumption 16W, maximum power output 13W, with plastic
case and electrical connection via connectors.

General Information
Application:
Led bars, led strips and led boards 12,8Vdc until 1A.
Index of protection:
IP 50
Electrical connection:
Connectors

Mechanical data
1
Straight male terminal 6.3x0.8, brass – TYCO 880636-1 or similar
2
Fastin-on tab housing 6.3, UL 94 V2, PA66 natural – TYCO 880309-1 or similar
3
Straight receptacle terminal 6.3x0.8, brass – TYCO 880646-1 or similar
4
Positive lock receptacle insulator, UL 94 V2, PA66 natural - TYCO 1-154719-0 or similar
5
Wire, brown, 22AWG, 105°, 600V, V1, 268±20mm, input
6
Wire, blue, 22AWG, 105°, 600V, V1, 193±20mm, input
7
Wire, red, 22AWG, 105°, 600V, V1, 268±20mm, positive output
8
Wire, black, 22AWG, 105°, 600V, V1, 193±20mm, negative output
9
Case, black, PC, V2
10
Identification label according O2 Led document, code 10750472
11
Resin, inside, covers PCB both sides, leads and electrolytic capacitors top to avoid sparks

Electrical data
Input voltage
85 to 265Vac
Input frequency
50/60Hz
Maximum power consumption
16W
Power factor
> 0,5
Efficiency
> 80%
THD
< 100%
Output voltage
12,8± 0,5Vdc
Maximum output current
1A
Maximum output ripple voltage
100mVpp
Maximum output power
13W
Input output isolation
isolated
Hi pot power supply to case
1500Vdc, 1 min
Hi pot input to output
1000Vdc, 1 min
EMI protection
No
Short circuit protection
yes
the device must not damage after one hour short
circuited
Over voltage protection
not applicable
Soft start
no soft start
Temperature
Over temperature protection
not applicable
Working temperature
0˚C to + 45˚C
Storage temperature
-20˚C to + 75˚C
Reliability
Life
36000 hours
Supply failure rate
800 PPM
MTBF
40000 hours
Warranty
3 years
