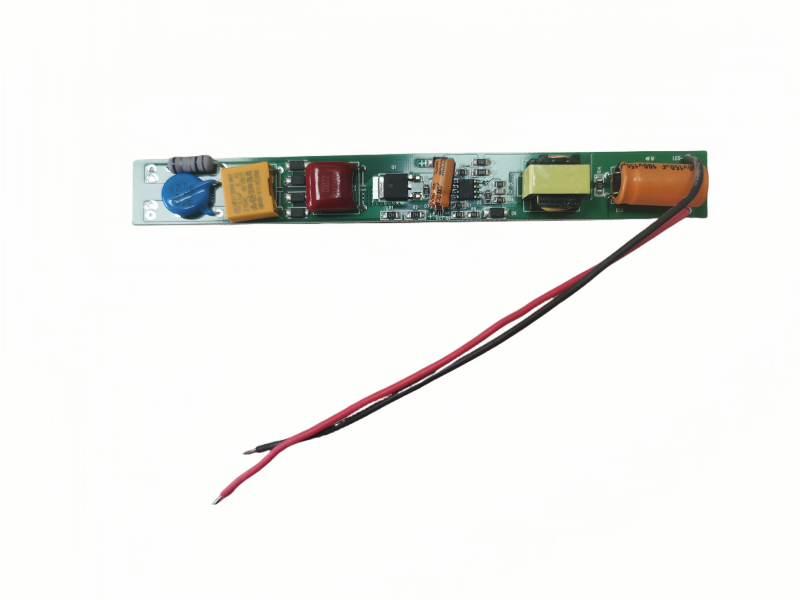

T8 LED TUBE POWER SUPPLY
T8 LED tube power supply, Input AC90 - 265V.
Tags:
Power supply size: 145x17.5x12.15MM.
Silicone wire, single-ended lead-out.
Positive pole of output terminal: Red cable, 20AWG, 105⁰, 300V, 130±10mm, with a 5mm pickle at the end.
Negative pole of output terminal: Black cable, 20AWG, 105⁰, 300V, 130±10mm, with a 5mm pickle the end.
Product Specification
Input AC90 - 265V.
Without EMC.
THD < 30%.
PF > 0.92.
Power efficiency: 90%.
Non-isolated.
Output voltage Vout: 35 - 50V.
Output current: 175 - 500MA, which can be adjusted by changing the resistance.
Initial factory output current: 460MA.
With OSCP and OOVP（OSCP：Over Current Protection ；OOVP：Over Voltage Protection ）
5-year warranty.
Download Product Specification
